E-Z Lock Connectors

Snap-in Connectors you can rely on

Bridgeport E-Z Lock Connectors provide a fast, high-quality installation solution. Snaps in fast, stays locked tight.

E-Z Lock Product Sheet

Why choose E-Z Lock? The advantages are clear:

  1. Easier to snap into place
  2. Easier to remove for rework
  3. Stays tight in the knockout
  4. Fits more cable sizes and types
EZLock_Full_group-1

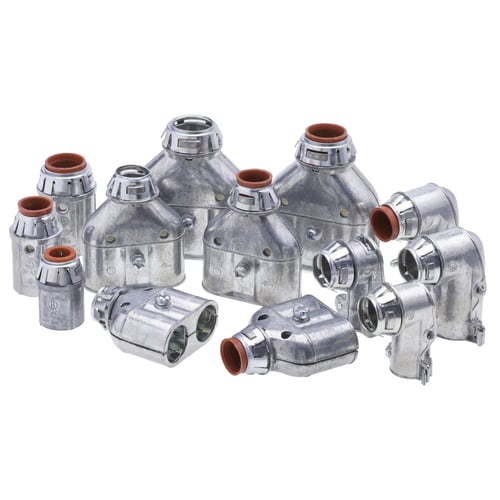

Complete Range of E-Z Lock Snap-In Connectors

From single to duplex to 90 degree, we have you covered. E-Z LOCK connectors are now listed for MC-PCS Cable.



HubSpot Video
7474ASP_left

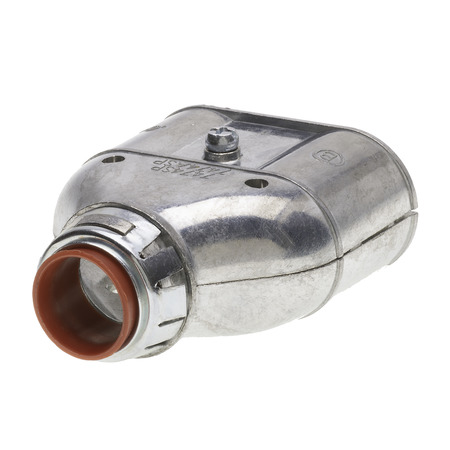

7474ASP

Listed for use with cables 0.73 - 0.85 in in diameter, including:

- 8/3 to 6/3 AC/AC90/ACG90/HCF-MCI-A/MCI-A cable
- 8/4 to 6/3 MC/HCF-MC/MC-PCS
- 1/2 in FMC/RWFMC (For FMC/RWFMC, use anti-short bushing cat. #1003)

3939SP-ASP_front

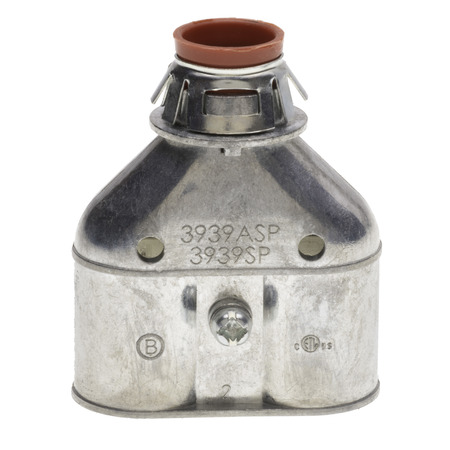

3939ASP

Listed for use with cables 0.54 - 0.73 in. in diameter, including:

- 10/3 to 8/3 AC/AC90/ACG90/MC/MCI-A/HCFMCI-A /MC-PCS cable

3838ASP_left

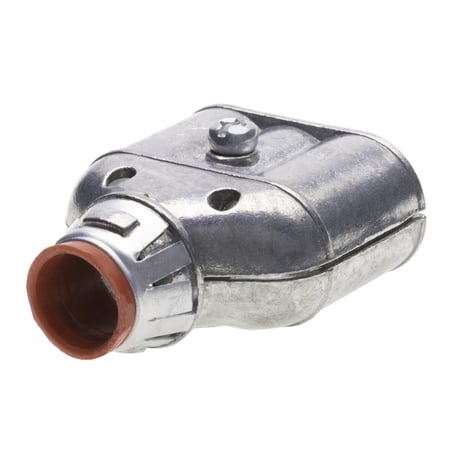

3838ASP

Listed for use with cables 0.38 - 0.59 in. in diameter, including:

- 14/2 to 10/2 AC/MC/MCI-A and 3/8 in. steel and aluminum FMC

38ASP_left

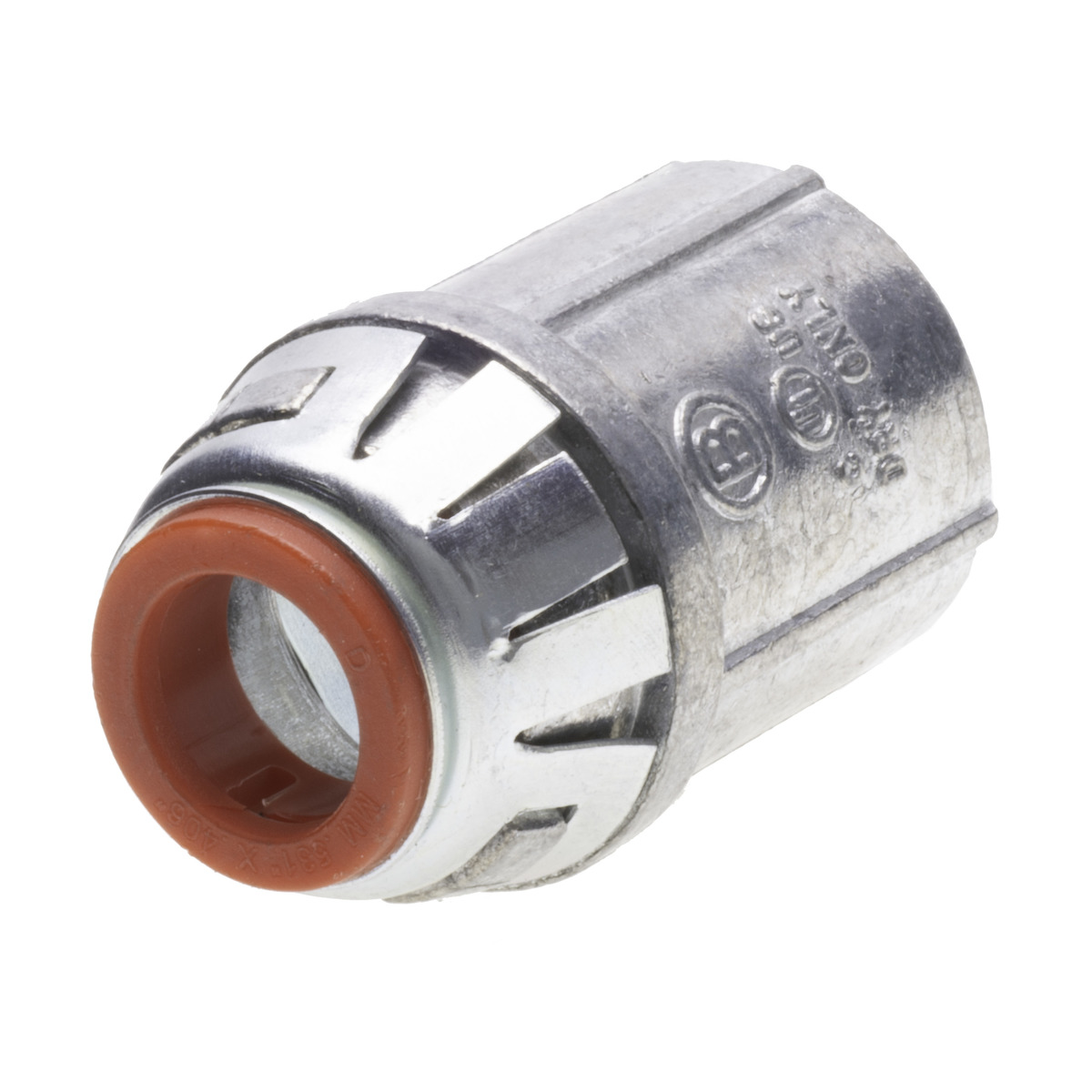

38ASP

Listed for use with 14/2 to 10/3 cable (.43 - .61 in. diameter) and 3/8 in. FMC/RWFMC
39ASP_Bridgeport_front

39ASP

Listed for use with 10/2 to 8/3 cable (.54 - .73 in. diameter)
802SP_main

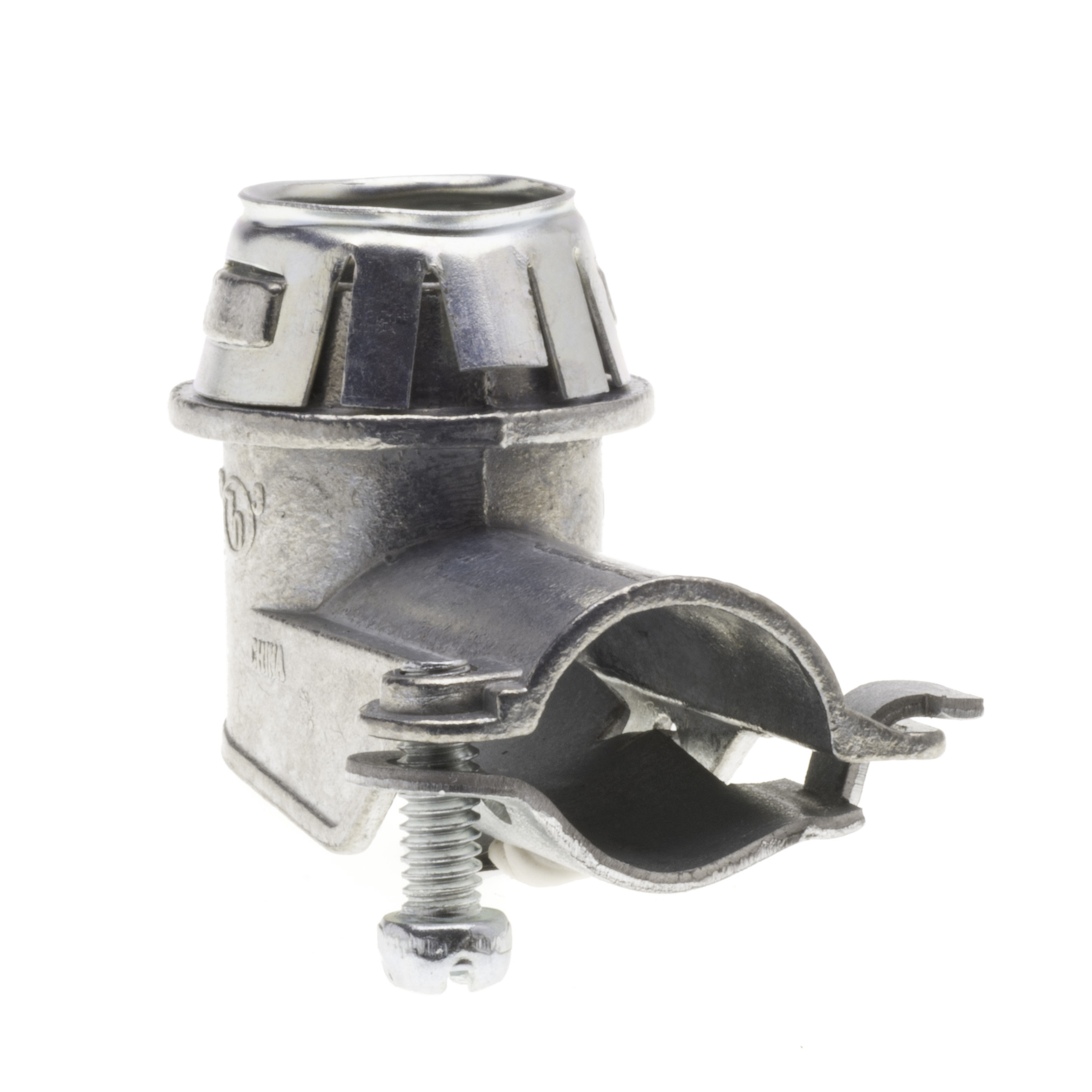

802SP

90° Fitting with cover used for connecting AC/MC or FMC to a box or enclosure. Recommended for 12/2 (.48" 0 min) to 10/3 (.58" 0 max)

74ASP_Bridgeport_front

74ASP

Listed for use with 8/3 to 6/3 cable (.73 - .85 in. diameter) and 1/2 in FMC/RWFMC
